Special System Parameters

Contents of this Topic: Show

Overview

Description of the Screen



Show parameters for: Workstation or Cart ID

Workstation

This Computer
Workstation Name
Parameter Group
Parameters in Selected Group

Cart ID

Parameter Group
Parameters in Selected Group
Parameter Text

List Maintenance

Close

Setting Special System Parameters

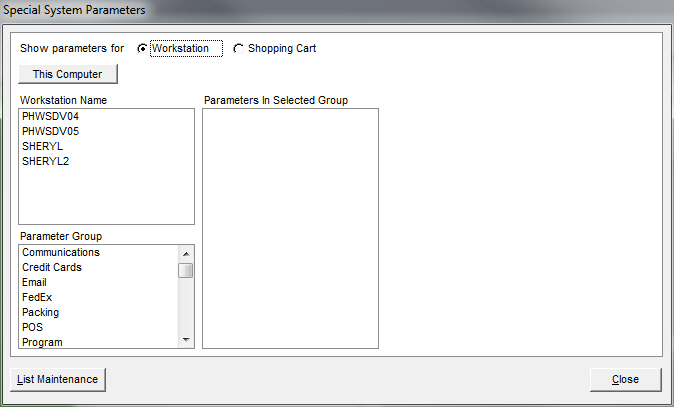

Workstation-Based Parameters

  1. Select the Workstation radio button in the Show parameters for: section in the top left corner of the screen.

  2. The workstations that have been defined in the current store file are listed in Workstation Name. Select a workstation from the list or r use This Computer add and select the computer from which you are working. If the Windows Computer Name of the desired workstation is not listed here, it can be added manually by using the List Maintenance feature of the program (Workstations List). Refer to Example 1, found at the end of this topic.

  3. The parameter groups that have workstation-based special system parameters are displayed in Parameter Group.

  4. Select a parameter group from the list and the workstation-based parameters for that group are displayed in Parameters in Selected Group.

  5. Select a parameter name from Parameters In Selected Group, and the Parameter Text, Parameter Value, True/False radio button or list box appears on the right-most side of the screen.

  6. Type in or click the appropriate value according to the parameter type:

  1. Click Save to retain your changes.

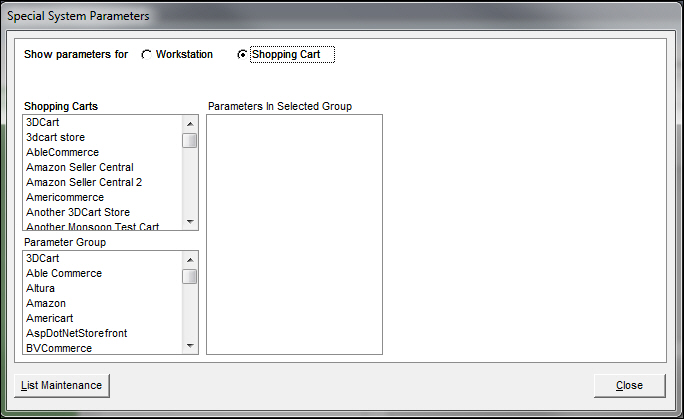

Cart-Based Parameters

  1. Select Cart ID in the Show parameters for: section in the top left section of the screen.

  2. The shopping carts that are defined in the current store file are displayed in the Shopping Carts list box.

  3. Click the name of the shopping cart for which a cart-based parameter will be set.

  4. The parameter groups that have cart-based special system parameters are displayed in the Parameter Group list box.

  5. Select a parameter group from the list and the cart-based parameters for that group are displayed in the Parameters in Selected Group list box.

  6. Click on a parameter name in the Parameters In Selected Group list box, and the Parameter Text, Parameter Value, radio button or list box appears on the right-most side of the screen.

  7. Type in or select the appropriate value according to the parameter type:

  1. Click Save to retain your changes.

Deleting Special System Parameters

  1. Navigate to the parameter in question.

  2. Select it and view the Parameter Text or Value boxes.

  3. Click Delete. The program asks for confirmation before deleting the value of the parameter.

  4. Click OK to delete the parameter's value or Cancel to leave the parameter setting as it was.

Example 1: Adding PCs to the Workstations List

  1. Click List Maintenance in the bottom left corner of the Special System Parameters screen.

  2. In Select List, scroll down to the Workstations list and select it. If any workstations are already defined they appear in the List Entries box.

  3. To add other workstations to the list, enter the Windows Computer Name of each of the workstations, one at a time, in the Computer Name text field and click Save.

Note: Consult the Help for the particular version of Windows that is installed to determine the Computer Name. For example, the computer name for a PC running Windows XP can be found in Control Panel > System > Computer Name tab. Use the left most characters of the Full Name field, up to the first "." (period).

  1.
  1. To create a list entry for the current workstation, click This Computer and then Save.

  2. When the list is complete, click Close to return to the Special System Parameters dialog box.

Additional Information

Set System Parameters



Created:

Revised: 10/12/12

Published: 04/14/16
